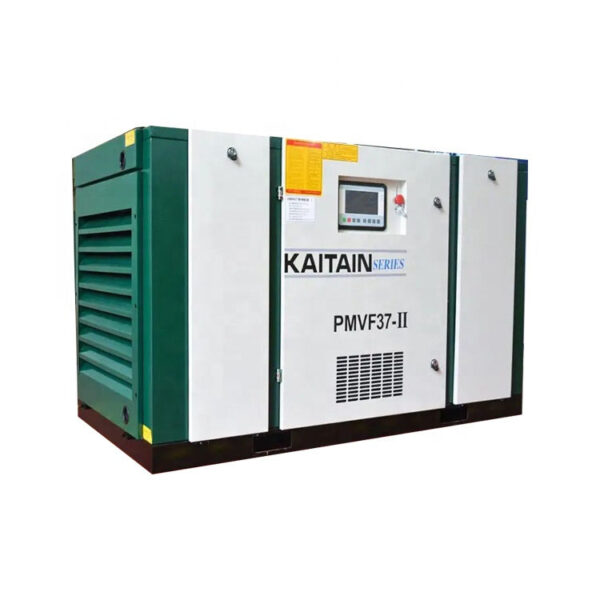

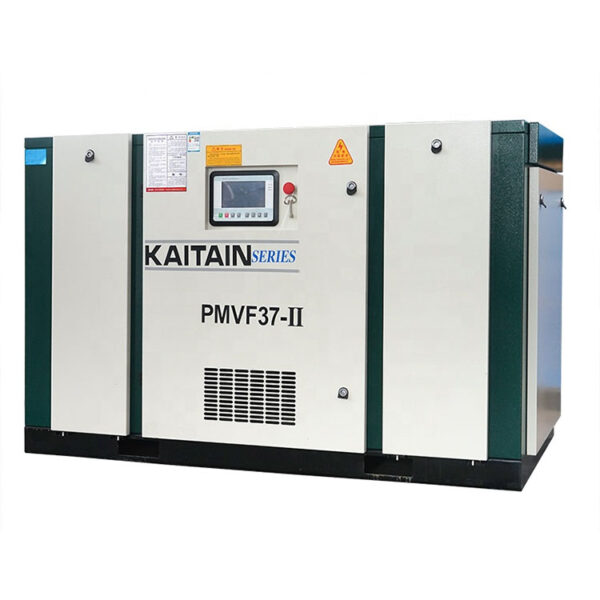

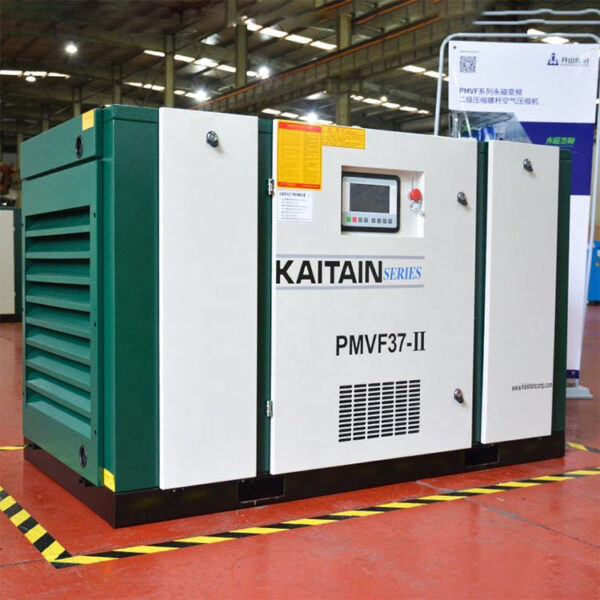

KAISHAN PMVF37-II 37kW (50HP) stationary screw air compressor with 7.2 m³/min airflow and 0.7–0.8 MPa pressure, designed for industrial compressed air supply systems.
| Parameter | Value |
|---|---|
| Product Model | PMVF37-II |
| Type | Screw |
| Configuration | Stationary |
| Power Source | AC Power |
| Voltage | 380V |
| Motor Power | 37 kW (50 HP) |
| Air Capacity | 7.2 m³/min |
| Air Displacement | 7.2 m³/min |
| Rated Exhaust Pressure | 0.7 MPa |
| Maximum Exhaust Pressure | 0.8 MPa |
| Gas Type | Air |
| Lubrication Style | Lubricated |
| Cooling Method | Air Cooled |
| Rated Speed | 3600 r/min |
| Unit Input Specific Power | 6.35 kW/(m³/min) |
| Dimensions (L×W×H) | 1820 × 1000 × 1140 mm |
| Weight | 500 kg |
| Core Components | PLC, Motor, Pump, Other |
| Brand | Kaishan |
| Place of Origin | Zhejiang, China |
| Machinery Test Report | Provided |
| Video Outgoing Inspection | Provided |
| Warranty | 1 Year |
| Application | Industry |
| Color | Green |
| MOQ | 1 |
