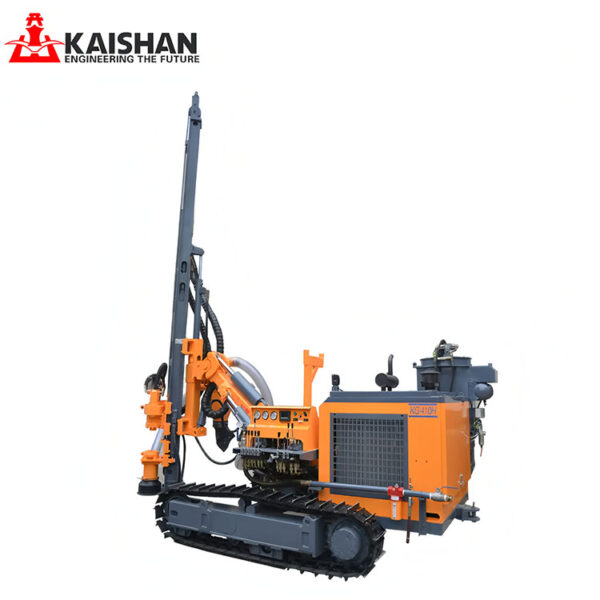

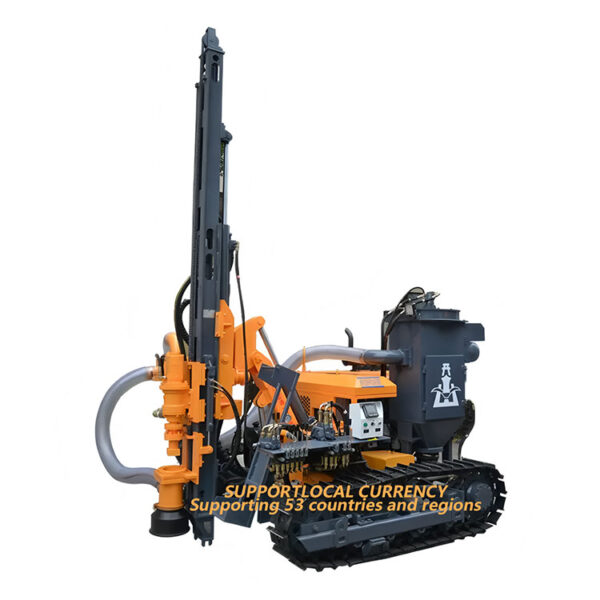

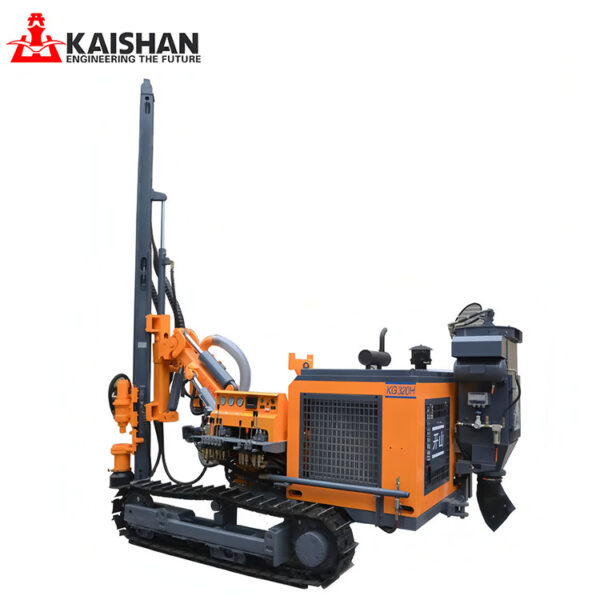

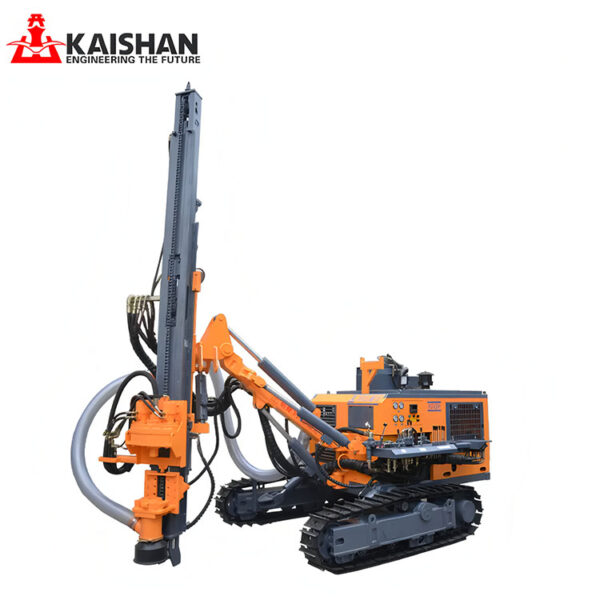

Portable diesel-powered Kaishan KGH3A rock drilling rig designed for ore and mining surface drilling. Supports 20–25 m drilling depth with 80–125 mm hole diameter range and mobile operation.
| Parameter | Value |
|---|---|
| Model Number | KGH3A |
| Brand | Kaishan |
| Usage | Ore / mine |
| Power Type | Diesel |
| Drilling Depth | 20–25 m |
| Economical Drilling Depth | 20 m |
| Drilling Diameter | 80–105 mm, 80–115 mm, 105–125 mm |
| Drilling Hardness | f=6–20 |
| Rotation Speed | 0–100 r/min |
| Feed Stroke | 2000 mm |
| Travelling Speed | 0–2.0 km/h |
| Climb Capacity | 30° |
| Weight | 4000 kg |
| Dimensions (L×W×H) | 4100×2030×2020 mm |
| Mobility | Move |
| Core Components | Motor, Pump, Engine |
| Color | Orange |
| Place of Origin | Zhejiang, China |
