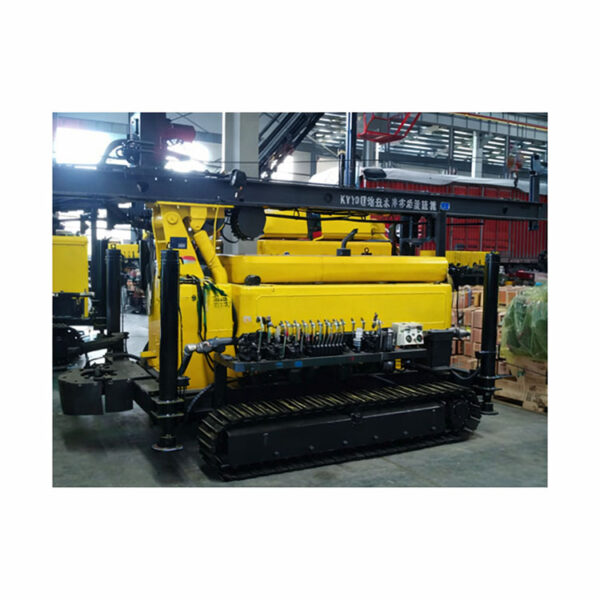

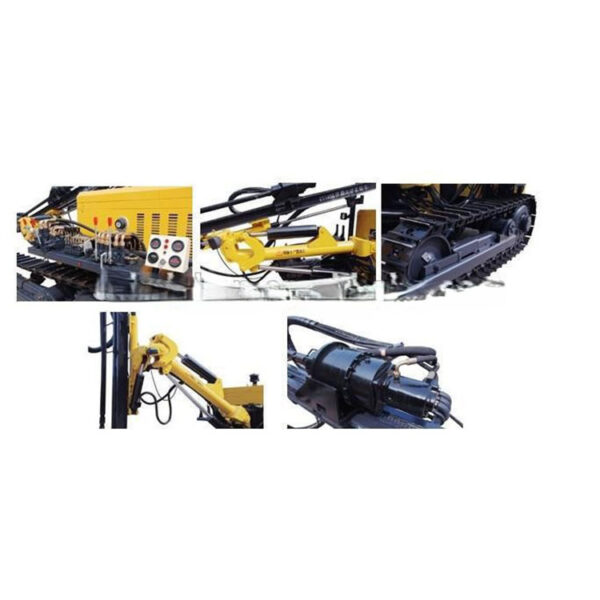

Portable rotary water well drilling rig with 120 m drilling depth, 152–190 mm borehole diameter, YC4D80 engine, and working pressure up to 2.46 MPa for rock and substrate drilling operations.
| Parameter | Value |
|---|---|
| Product Type | Rotary Drilling Rig |
| Model | KW10 |
| Product Name | Rock Buster R100 Portable Water Well Drilling Rig |
| Usage | Ore / Water Well Drilling |
| Drilling Depth | 120 m |
| Drilling Diameter | 152–190 mm |
| Air Consumption | 20–35 m³/min |
| Working Pressure | 1.05–2.46 MPa |
| Engine Model | YC4D80 |
| Suitable Rock Strata | Crumbly Rock and Substratum |
| Mobility | Movable |
| Weight | 6000 kg |
| Dimensions (L×W×H) | 6000 × 2300 × 2500 mm |
| Brand | Kaishan |
| Place of Origin | Zhejiang, China |
| Machinery Test Report | Provided |
| Video Outgoing Inspection | Provided |
| Warranty | 1 Year |
| Certification | ISO9001 |
| After-sales Service | Engineers available to service machinery overseas |
