That is reality.
I do not buy compressor-first package logic, because the published hammer-selection charts from Epiroc’s hammer selection guide and the current Mincon DTH hammer charts both start from hole diameter and hammer class, then work forward into airflow and pressure, not the other way around. Why are so many dealers still pretending the compressor comes first?
Here is the hard truth.
A 165 mm to 203 mm hole sits in one hammer conversation, a 200 mm to 254 mm hole sits in another, and once you move into roughly 216 mm to 305 mm territory you are in a different air-demand bracket entirely, which is exactly why the neat little “one compressor fits all” pitch keeps collapsing once the rig reaches real rock, real altitude, and real production targets. Who benefits from that ambiguity?
And the cost penalty is not theoretical.
The DOE compressed-air overview says compressed air systems consume around 90 billion kWh of electricity in the U.S. each year, with almost 80% of the input electricity dissipated as heat; that is a blunt reminder that oversizing, bad control logic, and fake reserve margins are not harmless spec-sheet sins. They are operating-cost decisions.
Three words first.
Pick the hole, because hole diameter determines the hammer class window, and the current Epiroc table makes that explicit: COP M6 covers about 165-203 mm bits, COP M7 about 200-254 mm, and COP M8 about 216-305 mm, while Mincon’s current ranges show similar step-ups from roughly 4-inch, 5-inch, 6-7-inch, and 8-9-inch hammer families. Why would I size an air compressor for DTH hammer work before I know which hammer family the bit actually belongs to?
This part bites.
Most buyers ask for CFM as if pressure were a side note, but Mincon’s current charts show airflow rising with operating pressure across every hammer family, and Epiroc’s guide does the same with separate low-flow and high-flow curves; in other words, “compressor size for DTH hammer” is never just a flow number, it is flow at pressure, tied to bit size and hammer configuration. Isn’t that the whole point of a DTH hammer air consumption chart?
Brochures flatter.
Epiroc’s worked example is the cleanest illustration I found: a rig package rated at 1,070 cfm at 24 bar, operating at 1,800 m and 10-20°C, is treated as delivering only 81% of rated volume, or about 870 cfm effective, and that correction changes the recommended hammer configuration for the job. So why are people still quoting sea-level airflow as if altitude were a rumor?
Mincon is just as direct.
Its chart notes say the published air-consumption values are based on 20°C and 101.325 kPa, and they warn that air density drops with altitude, which increases air consumption and alters the real package requirement. That is not a legal disclaimer to skip past; that is the selection logic.
I am not presenting the table below as a verbatim manufacturer chart. I am synthesizing current Epiroc hammer-selection bands and current Mincon air-volume charts into a dealer-side planning tool, because that is how sensible DTH compressor selection should be discussed before final brand-specific validation. Would I still verify against the exact hammer chart before quoting? Every single time.
| Hole diameter | Likely hammer class | My planning airflow band* | What I would tell a buyer |
|---|---|---|---|
| 110-130 mm | 4″ | ~350-550 scfm at high pressure | Entry DTH range; do not pretend this package has comfortable room for larger-hole production. |
| 127-152 mm | 5″ | ~550-850 scfm | Common mid-range water-well and utility work; this is where weak reserve starts hurting penetration. |
| 152-203 mm | 6″ to light 7″ | ~750-1,000 scfm | The danger zone for underspec’d packages sold on nameplate flow alone. |
| 200-254 mm | 7″ to 8″ | ~900-1,300 scfm | This is the band I see misquoted most often; 203 mm holes are rarely forgiving. |
| 216-305 mm | 8″ class and above | ~1,100-1,500+ scfm | Large-hole work punishes lazy compressor math fast. |
*Planning band only. Final selection must be checked against the actual hammer’s air-consumption curve, the target bar/psi, altitude, temperature, hose losses, and reserve margin.
I add margin.
My own recommendation is simple: after matching the hammer chart to the intended pressure, I add a real reserve band rather than a cosmetic one, because fluctuating rock, wear, leakage, routing losses, and site conditions punish zero-headroom packages first. Is 5% reserve enough when the site is hot, elevated, and running long lines? Usually not.
The energy side makes the case even harder.
According to the DOE material above, compressed air is already an inefficient utility, and DOE’s Nissan air-compressor control case study reports a 24% reduction in air-compressor electricity usage at the Decherd Infiniti Powertrain Plant after automated control improvements, which is the polite government way of saying poor air-system management wastes serious money. Oversizing the wrong way and controlling it badly is not “future-proofing”; it is expensive indecision.
Fuel still matters.
The EIA’s diesel outlook for 2024 projected on-highway diesel prices averaging $3.70 per gallon in 2024 after $4.23 in 2023, which is one more reason wholesalers and brand owners should stop treating compressor inefficiency as background noise; air package mistakes are paid for every hour the engine runs. Why burn diesel to compensate for bad selection discipline?
And there is a compliance angle people dodge.
On U.S. construction work, the OSHA respirable crystalline silica standard applies above 25 μg/m³ as an 8-hour TWA and restricts compressed air for cleaning where it could contribute to silica exposure unless ventilation captures the dust cloud or no feasible alternative exists, so “more air” is not a free pass to make a dirty operation dirtier. Better hole cleaning is not the same thing as careless dust handling.
Package honesty matters.

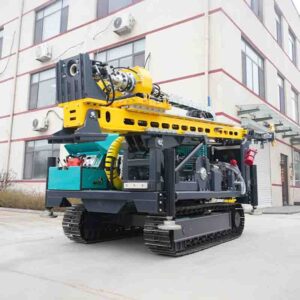

If you are bundling a 150m electric portable mobile water well drilling rig, I would keep the DTH bit size and air pressure claim narrow and explicit, because electric portability does not magically erase the airflow penalty of moving up a hammer class.

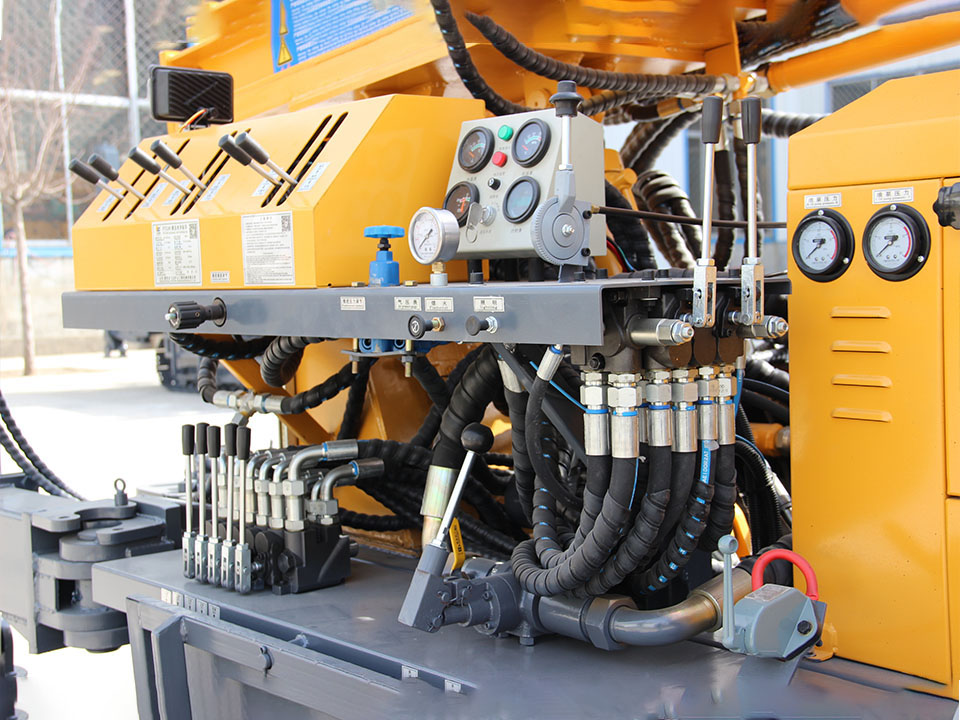

The same rule gets sharper on a 180–200m diesel hydraulic portable water well drilling rig or a 200m deep hydraulic portable water well drilling rig: sell the corrected output, the expected hole band, and the hammer class together, or the dealer will end up explaining low penetration with excuses instead of numbers.
And on a 200m tractor-mounted water well drilling rig, I would be stricter still, because mobile packaging tends to expose fantasy specs faster than heavy standalone setups do; the lighter the platform, the less room you have for bad compressor math dressed up as versatility.

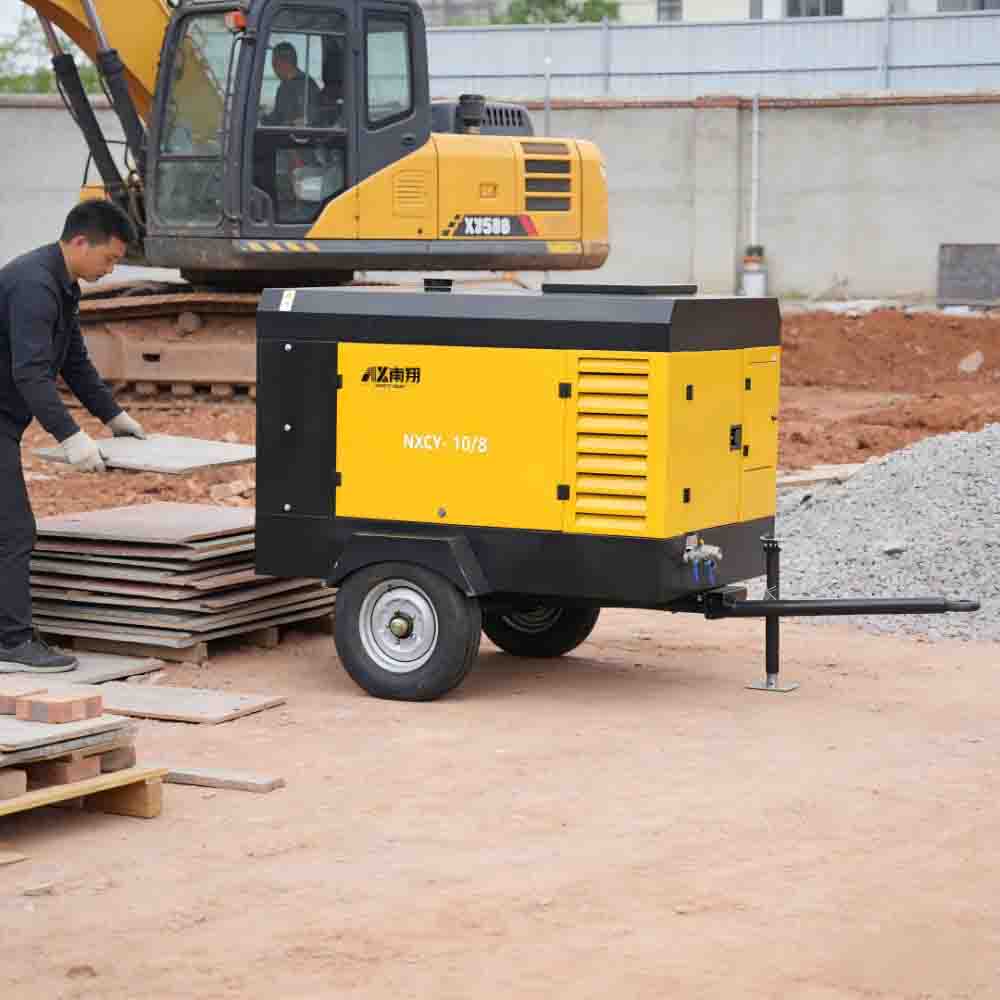

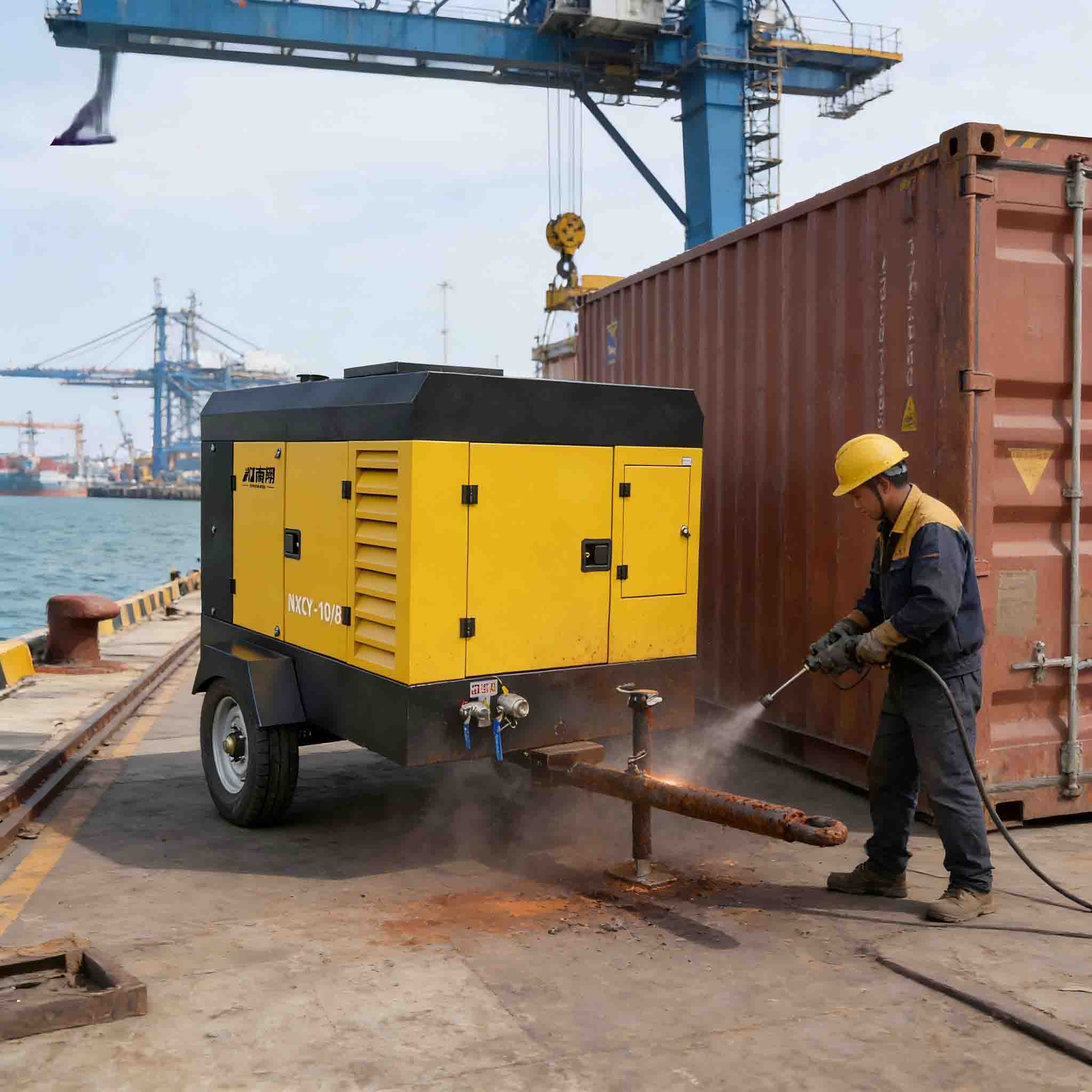

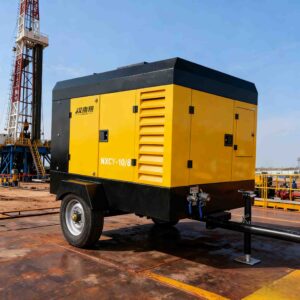

A 6-inch DTH hammer usually needs a high-pressure compressor package that can still deliver roughly 750 to 1,000 scfm at working pressure after correcting for altitude, ambient temperature, and site losses, rather than a nameplate airflow figure quoted under ideal test conditions. That range shifts by brand, bit diameter, and whether the job is really light 6-inch work or edging into 7-inch hole expectations.

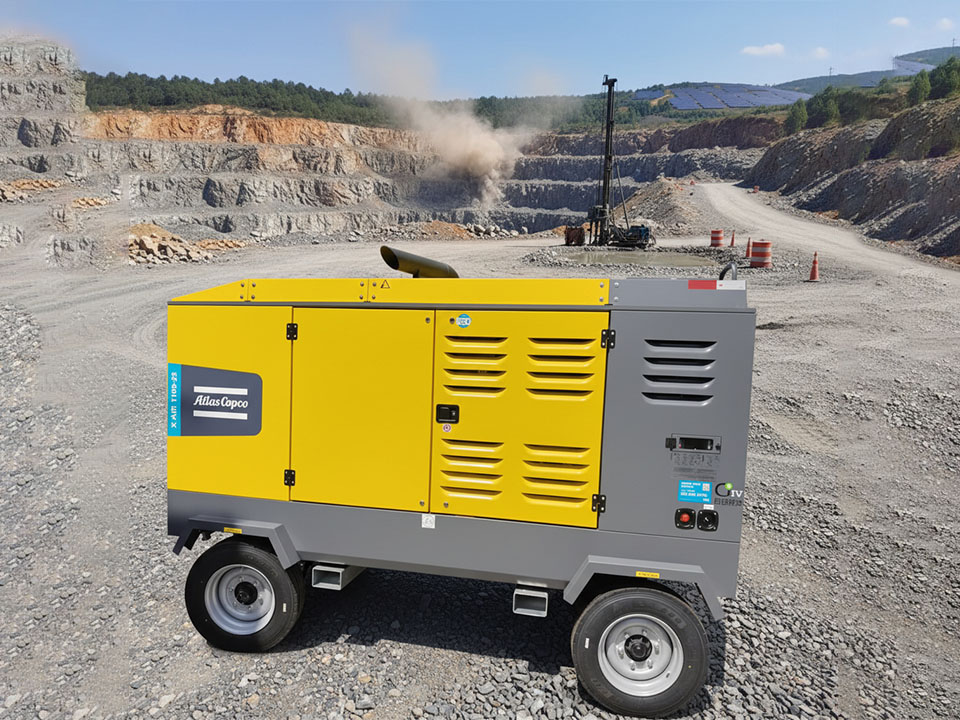

Sizing a compressor for DTH drilling means selecting a unit whose corrected output matches the hammer’s air-consumption curve at the intended pressure and bit diameter, then allowing extra capacity for temperature, altitude, line losses, wear, and drilling variability rather than trusting nominal CFM alone. In practice, I start with hole diameter, choose hammer class, read the hammer chart at pressure, then correct the compressor’s real field output before I quote anything.
Hole diameter matters first because it sets the hammer class envelope, and that hammer class then determines the pressure-flow requirement, which is why modern manufacturer selection guides map bit size to hammer family before they discuss compressor behavior or low-flow versus high-flow setups. If the hole diameter puts you in 7-inch hammer territory, I do not care that someone wants to “make do” with a smaller air package. That is how slow drilling becomes a sales problem.
When compressor CFM is too low, the hammer is starved of the air volume it needs to sustain impact energy, cuttings evacuation, and stable drilling pressure, so penetration drops, cleaning worsens, and the package often runs harder while delivering less useful work at the bit. That shortfall is amplified by altitude and temperature, which is why corrected airflow matters more than brochure airflow.
Stop selling fantasy packages.
Build your next dealer sheet around four lines only: target hole diameter, hammer class, corrected airflow at pressure, and the altitude/temperature note that changes the real answer. Then apply that discipline across your portable lineup, from the 150m electric portable mobile water well drilling rig to the 180–200m diesel hydraulic portable water well drilling rig, the 200m deep hydraulic portable water well drilling rig, and the 200m tractor-mounted water well drilling rig. That is how you raise dealer confidence, protect hammer life, and stop losing credibility to the first crew that puts the package into hard rock.
