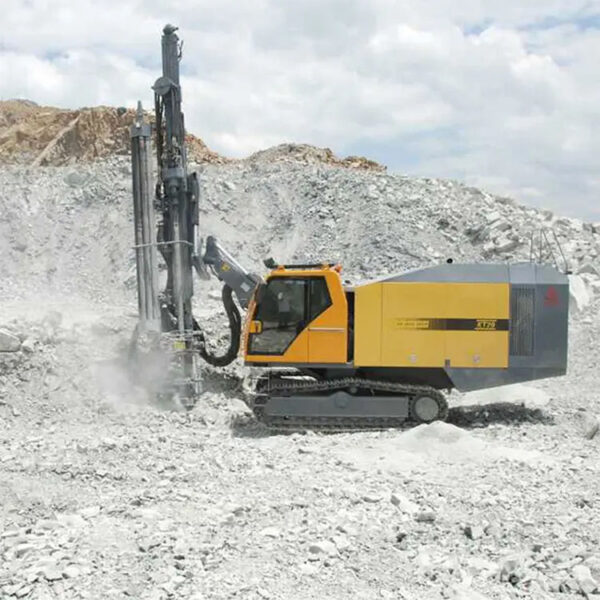

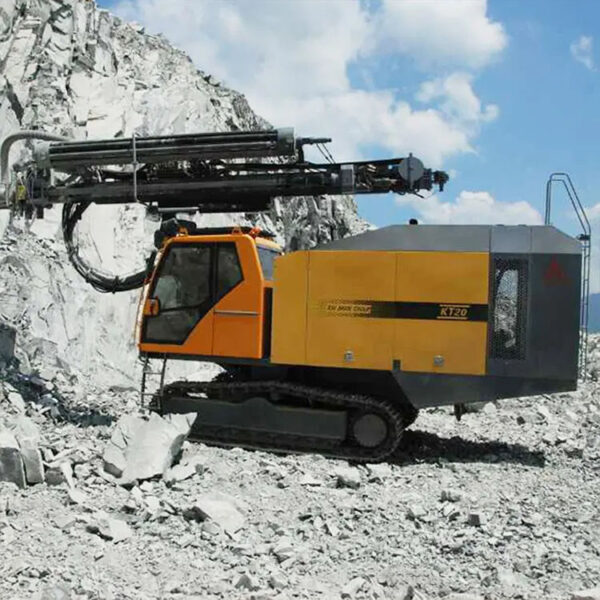

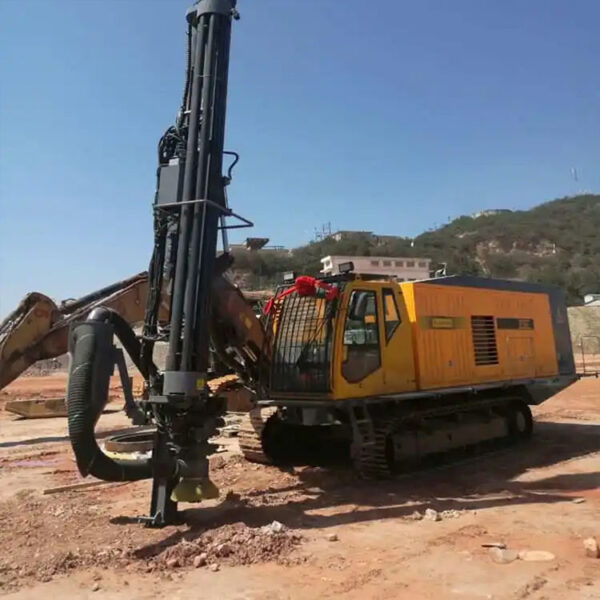

Kaishan M30 DTH rotary drilling rig with 80–130 mm drilling diameter, max 40 m depth, 162 kW engine and 1680 N·m torque for rock drilling and construction projects.
| Parameter | Value |
|---|---|
| Product Name | DTH Drilling Rig |
| Type | Rotary Drilling Rig |
| Usage | Rock Drill |
| Power Type | Diesel |
| Drilling Diameter | 80–130 mm |
| Max Drilling Depth | 40 m |
| Drilling Depth | 25 m |
| DTH Hammer | M30 |
| Power | 162 kW |
| Rotary Torque | 1680 N·m |
| Max Push Pull Force | 25000 N |
| One-Time Advance Length | 900 mm |
| Walking Speed | 2.5–4 km/h |
| Weight | 7500 kg |
| Dimensions (L×W×H) | 6500 × 2400 × 2600 mm |
| Core Components | Motor, Engine |
| Brand Name | Kaishan |
| Place of Origin | Zhejiang, China |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing Inspection | Provided |
| Key Selling Points | Long Service Life |
| Application | Construction |
