Three words first. Air lifts rock.
I’ve sat through enough rig-and-compressor sales calls to know how this usually goes: somebody pounds the table about pressure, somebody else throws out a heroic CFM number, and almost nobody slows down long enough to ask the only question that actually decides whether the hole stays open, the hammer stays happy, and the customer stays off your back after delivery—what return velocity are we really getting in the annulus, under ugly field conditions, not showroom conditions?
That’s the fight.
But let’s start where the nonsense starts. Most buyers are taught—badly—that pressure is the “power” number and volume is just supporting cast. I frankly believe that idea has wrecked more drilling jobs than a lot of people in this business want to admit.
Uphole velocity, in plain field language, is the upward speed of the return stream moving through the annulus between the drill string and the bore wall. If that speed falls off, cuttings don’t clear right. They loaf around. They stack. They regrind. Then the whole bottom-hole system gets dirty and stupid. A widely cited groundwater-drilling reference hosted by Western Oregon University says large-diameter water-well drilling often needs uphole velocities of 150 ft/min or greater to keep returns moving properly. That’s not a decoration in a manual. That’s a warning label.
And that’s why I don’t love the first-question habit of “How much PSI?” Wrong question. Not always—but often enough. The better question is uglier and more useful: what annular velocity will this airflow create once the bore opens up, the cuttings load gets nasty, and the job stops behaving like the tender document?
Buyers looking at a truck-mounted deep borehole drilling rig options for 600 m class work or a diesel 300 m water well drilling rig for mixed export jobs should be thinking about hole size, pipe OD, water inflow, bit program, and actual compressor delivery at the hole. Not brochure swagger.
Here’s the ugly truth: bore cleaning is mostly a transport problem pretending to be a horsepower problem.
When you raise air volume, you generally raise the upward movement of the return stream in the annulus, which means more ability to drag cuttings out before they bed up. That’s not just drilling folklore from old hands with dusty notebooks. A 2024 Scientific Reports paper on multiphase slag discharge found that increasing gas injection volume raised gas fraction in the return section from 0.46 to 0.56, while the average upward velocities of mud and rock slag increased by 21% and 22%. That’s the stuff that matters—actual lift behavior, not chest-beating over a spec sheet.
More air helps.
Usually.
But here’s where sales language gets slippery. A compressor can look generous on paper and still be a weak fit in the field if the annulus is too wide, the hole washes out, the formation starts sloughing, or water inflow turns the returns heavier and lazier. Same CFM sticker. Very different job.
And yet I keep seeing the same mistake. A buyer wants a larger bore—fine. The supplier keeps roughly the same compressor class—less fine. Then everyone acts surprised when the hole stops cleaning as well as the smaller one did.
That isn’t bad luck. That’s geometry.
When hole diameter grows, annular area grows too. So the same airflow has a bigger space to energize. Velocity drops. Cleaning weakens. Cuttings linger. Penetration starts to sag. The hammer breathes through garbage. Then the operator leans harder on the machine to compensate—which is how stupid little sizing mistakes grow into expensive “machine problems.”

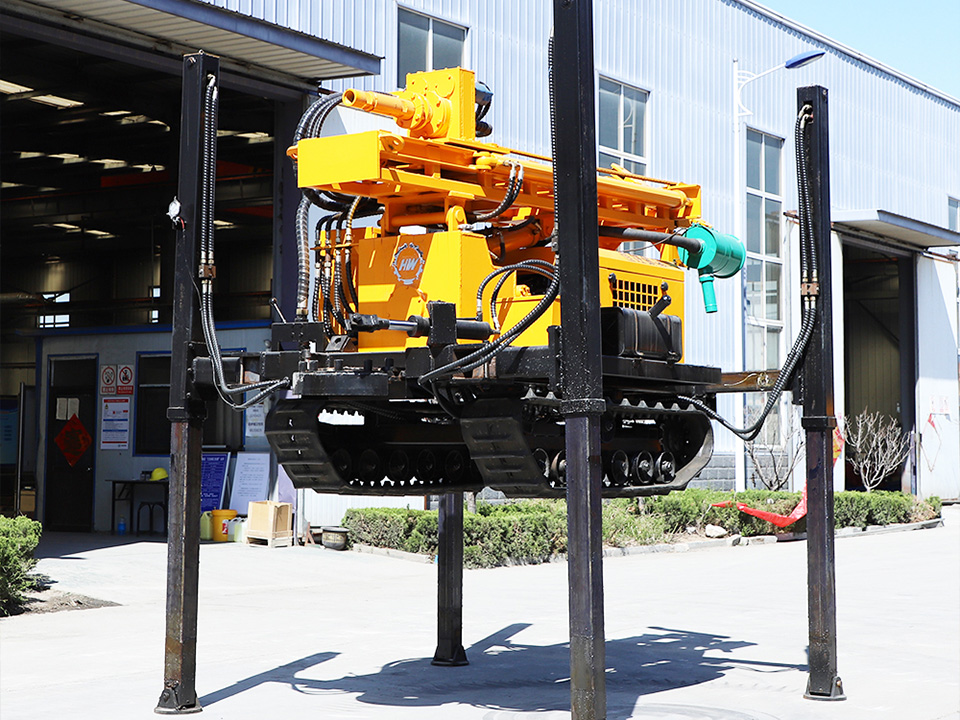

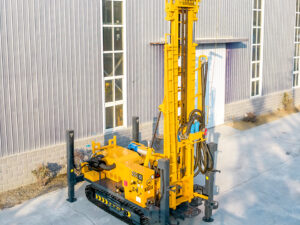

So, yes, mast size matters. Rotary head matters. Feed force matters. But if the air package is undersized for the annulus, you’re already in the weeds. A crawler type 100 m hydraulic water well drill and a high-quality truck-mounted water well drilling rig don’t just live in different rig classes—they demand different honesty about hole cleaning.
I’m not asking buyers to run a CFD model in the hotel lobby. I’m asking for one decent annulus check before somebody signs a PO.
You calculate annular area from the hole diameter and the drill pipe outside diameter. Then you compare delivered airflow—not brochure airflow, delivered airflow—to the annular space you’re asking it to clean. That rough pass won’t make you a drilling physicist. It will, however, keep you from making clownish selection mistakes.
| Variable | What it means | Why it matters |
|---|---|---|
| Hole diameter | Final drilled bore size | Larger hole lowers uphole velocity if airflow stays the same |
| Drill pipe OD | Outside diameter of rods or drill string | Larger pipe shrinks annular area and can improve return speed |
| Air volume (CFM) | Delivered airflow, not brochure fantasy | Main driver of cuttings lifting in air drilling |
| Water inflow | Formation water entering the hole | Heavier return column can kill cleaning performance |
| Cuttings load | Rock size, density, and penetration rate | More material requires more transport energy |
| Hole condition | Gauge hole vs washed-out hole | Washouts destroy the velocity you thought you had |
From my experience, a quote that names compressor pressure but won’t talk clearly about annular velocity is incomplete. I’d go further: it’s a yellow flag.
And no—delivered airflow is not the same thing as catalog airflow. Hose losses, leakage, heat, altitude, ugly plumbing, and site conditions all nibble at the number. Then the buyer wonders why the rig feels flat in the hole. Well, there’s your answer.
Yet this is the part that tricks people. Dirty holes don’t always collapse into disaster in one cinematic moment. They drag performance down gradually—the worst kind of failure, because people argue about the cause while the money leaks out.
First, the hole gets dirty. Then cuttings start hanging around bottom. Then regrind gets worse. Then penetration slows. Then the hammer’s impact efficiency goes soft because it’s working in trash instead of clean bottom conditions. Then bit life goes sideways. Then fuel consumption and operator frustration climb. Then the service complaint arrives with the usual sentence: “The rig has no power.”
Maybe. Or maybe the air package was wrong from day one.
And I’m not just talking about raw airflow. The 2024 Scientific Reports study also noted that increasing rotation speed can disturb circulation behavior and reduce upward runoff velocity even when some pressure-related conditions improve. That matters because drilling is a system, not a one-number religion. Air volume, RPM, bottom-hole geometry, return path, and material properties all start wrestling with each other once the job gets real.
But there’s another layer that gets ignored until a regulator or insurer shows up.
If cuttings evacuation is sloppy—especially in silica-rich formations—you’re not only burning time and steel. You may also be building a dust exposure problem. OSHA says respirable crystalline silica exposure is linked to silicosis, lung cancer, COPD, and kidney disease. That isn’t some soft HR memo. That’s a hard exposure issue.
Then the rules tightened. On April 18, 2024, MSHA issued its final silica rule and set a 50 micrograms per cubic meter permissible exposure limit for a full-shift exposure, with a 25 micrograms per cubic meter action level; the federal rulemaking record says the measure is projected to prevent 531 deaths and 1,836 cases of silicosis over 60 years. Those are not “small print” numbers. They tell you where enforcement thinking is going.
And once a drilling job generates messy spoil streams, disposal and handling can turn into their own paperwork swamp. That’s one reason I don’t laugh off poor return control as “just a drilling efficiency issue.” It bleeds outward.
Pressure matters. Of course it does. A DTH hammer still needs the right pressure band to strike properly. But a hammer hitting in a cuttings-packed bottom hole is like a prizefighter throwing punches in wet cement. Great effort. Bad result.
This one is everywhere. People quote the compressor sticker as if every cubic foot makes it cleanly to the bottom of the hole. It doesn’t. Not always. Not remotely, in some jobs.
I wish. In broken ground, weathered overburden, nasty seams, swelling zones, or fractured rock, the hole can open up and ruin the neat annular assumptions that looked fine during quotation. Then the same airflow suddenly looks anemic.
Water changes the carrying regime—full stop. It alters mixture behavior, makes returns heavier, changes lift performance, and exposes weak air packages fast. When somebody says, “This compressor worked on the last job,” I usually hear, “We haven’t thought this through.”
Before I approved a package, I’d want answers to these—in real words, not marketing vapor:
That’s the line between selling a rig and selling a rig that won’t come back to haunt you.
Uphole velocity is the upward speed of air, mud, or mixed return flow moving through the annulus between the drill string and the borehole wall, and its practical job is to carry cuttings out fast enough that they don’t settle, regrind, or smother bottom-hole performance. In simpler terms, it’s the lifting speed that decides whether the hole stays clean or turns into a junkyard; Western Oregon University’s drilling reference says large-diameter water wells often need 150 ft/min or greater as a practical benchmark.
Air volume matters more for bore cleaning because pressure helps power the hammer, but airflow is what maintains the return-stream movement needed to transport cuttings up the annulus and out of the hole during actual drilling. That’s why high-pressure systems can still underperform if they don’t move enough air; a 2024 Scientific Reports study found that increasing gas injection volume improved gas fraction and raised average upward velocities of mud and rock slag by 21% and 22%.
The fast field method is to estimate the annular area from hole diameter and drill pipe OD, then check whether delivered airflow—not advertised airflow—can maintain enough uphole velocity for the cuttings load, water conditions, and likely washout you expect. I wouldn’t trust any estimate built only around catalog numbers; I’d back-calculate from the actual annulus and then add some realism for losses and lousy ground.
When uphole velocity is too low, cuttings stop clearing efficiently, begin settling or recirculating, and gradually turn the bottom of the hole into a dirty, energy-wasting zone that hurts penetration, bit life, and hammer efficiency. The knock-on effects aren’t just mechanical either—poor cuttings handling can worsen dust and silica exposure risks, which matters more now that OSHA and MSHA are treating respirable crystalline silica as a major worker-health issue.
Yes—poor bore cleaning can spill into dust exposure, spoil management, and worker-protection problems when drilling in silica-rich or messy return conditions, especially if the operation is already weak on control measures. In 2024, MSHA finalized a silica rule with a 50 µg/m3 permissible exposure limit and a 25 µg/m3 action level, and the federal rulemaking record tied that change to preventing 531 deaths and 1,836 silicosis cases over 60 years, which tells you regulators don’t view this as a side issue anymore.
So here’s where I land.
Stop treating the air package like an accessory. It isn’t. It’s the part of the system that decides whether the hole cleans itself properly or turns into a complaint factory. I frankly believe a lot of export failures blamed on “quality” are really sizing mistakes that should’ve been caught with one honest annular-velocity conversation.
So test the package before you sell it—or buy it. Put the target bore size, pipe OD, water risk, and expected formation behavior next to the actual compressor class. Then compare that logic against the machine you’re considering, whether it’s a 600 m truck-mounted deep borehole water well drilling rig, a crawler type 100 m hydraulic water well drill, a high-quality truck-mounted water well drilling rig, or a diesel engine 300 m water well drilling rig.
Because once the returns go lazy, the argument’s basically over.
