Depth changes everything.
I’ll say the quiet part out loud: most buyers do not under-spec their air package because they are careless; they under-spec it because too many sellers still talk about compressor nameplate numbers as if hose loss, drill string length, water entry, fractured rock, and annular cleaning somehow stop mattering once the brochure looks neat. Why would a 900 cfm package that behaves fine at 90 meters still behave fine at 180 or 220 meters? It usually will not.
A DTH water well is not powered by catalog optimism. It is powered by the air volume and working pressure that actually arrive at the hammer after losses through hoses, joints, drill pipe, water inflow, and the annulus. The older USGS drilling guidance still says something many modern sales pages avoid saying plainly: air drilling depends on moving cuttings out of the hole, and the minimum annular air velocity for dry-air hole cleaning is about 3,000 ft/min; it also notes that the industry often leans toward higher-volume, lower-pressure compressors for air-rotary work. That is the technical spine of this entire argument. Lose annular velocity, and the hole starts punishing you.
And yes, deeper bores change both sides of the equation. More depth means more friction path and more opportunity for pressure decay before the hammer sees it. More depth also means more distance for cuttings to travel back to surface, which means your “acceptable” CFM at shallow depth can become miserable CFM at depth once water, fines, and formation slough start loading the return stream. According to USGS guidance, air, mist, foam, and polymers are often used precisely because sticky wet cuttings otherwise accumulate and plug the bit or cling to pipe. That is not theory. That is field reality.
So here is my bias: I do not trust shallow-hole compressor logic for deep DTH water wells.
This is the hard truth.
The industry likes to talk about drilling depth as if it were mostly a rig issue. It is not. It is an air-delivery issue just as much. The deeper you drill, the more your compressor package is forced to prove whether it can still maintain useful bottom-hole pressure while moving enough free air to lift cuttings efficiently through the annulus. The hammer does not care what the gauge says beside the engine canopy. It cares what reaches the bit.
That matters more now because deeper and more stressed groundwater systems are not some fringe talking point anymore. A 2024 Reuters report on a Nature study said groundwater levels around the world have shown widespread and “accelerated” decline over the past 40 years. When groundwater falls, more projects push deeper, and depth turns mediocre air packages into expensive mistakes. Reuters’ 2024 report on accelerating groundwater decline makes that bigger structural point very clearly.
The U.S. data are not small either. A 2024 nationwide groundwater well database published in Scientific Data described more than 14.2 million well records in the United States, with roughly 80% of wells constructed between 1975 and 2023 and over 12.3 million records having consistent locational data after QA/QC. That scale matters because it tells you this is not a boutique engineering debate; it is a mainstream infrastructure issue with real depth, capacity, and reliability consequences. The 2024 U.S. groundwater well database is one of the clearest recent datasets on the subject.
And USGS has been warning for years that groundwater depletion dries up wells, reduces streamflow, and drives broader supply problems. USGS on groundwater decline and depletion is blunt: sustained pumping and drought push water levels down, and wells fail when they no longer reach the water table. Buyers pretending depth is only a rig mast number are reading the wrong problem.
Every extra meter adds resistance. Some of that loss comes through the air path before the hammer. Some of it comes from what the hole itself demands once water shows up, fines get heavier, and the return path gets uglier. Pressure at the compressor is not pressure at the hammer. And when bottom-hole pressure drops, impact energy drops with it.
That is where bad buying decisions start. I see too many comparisons framed as “350 psi versus 500 psi,” as if the sticker itself settles the matter. It does not. A deeper bore with long hoses, small restrictions, and wet returns can turn a nominally “high-pressure” setup into a soft-hitting hammer by the time the air reaches bottom. What looked efficient on paper becomes slow, unstable, and fuel-hungry in rock.
Most performance failures in deep DTH water wells are not dramatic. They are incremental. Penetration rate softens. Cuttings lag. Regrind increases. Bit wear becomes less predictable. The hole gets dirty. Then someone blames the hammer, the formation, or operator technique.
But the underlying problem is often simple: not enough free air to maintain annular velocity and carry cuttings cleanly to surface. USGS guidance’s 3,000 ft/min minimum annular air velocity for dry-air cleaning is the number buyers should tattoo onto every compressor comparison sheet. Once water entry or sticky fines appear, your real margin shrinks even more, which is why mist, foam, and polymers are used to help the system recover cleaning performance.
Water is not a footnote. It is the moment shallow-hole assumptions break.
When water enters the bore, the compressor is not only powering the hammer and transporting cuttings. It is also fighting the added burden of lifting a wetter, heavier return column while preserving enough energy downhole to keep the hammer alive. That is why two wells at the same nominal depth can behave completely differently. One is clean, dry, and fast. The other is wet, fractured, and maddening.
Here is the practical view I use when judging packages. Not lab-perfect. But honest.
| Bore Condition | What Happens to PSI | What Happens to CFM Demand | Typical Field Result if Undersized |
|---|---|---|---|
| Shallow, dry, competent rock | Moderate loss | Moderate demand | Acceptable drilling, decent cleaning |
| Mid-depth with some water entry | Noticeable loss | Higher demand | Slower ROP, cuttings lag, inconsistent hammer response |
| Deep, dry hard rock | Significant cumulative loss | High demand | Bottom-hole pressure fades, penetration suffers |
| Deep with water + fractured zones | Severe practical loss | Very high demand | Dirty hole, regrind, unstable returns, reliability complaints |
I would rather see a buyer choose a compressor class with real reserve than squeeze into the smallest package that “should work.” Reserve is not waste. Reserve is what keeps the hammer hitting when the hole stops being polite.

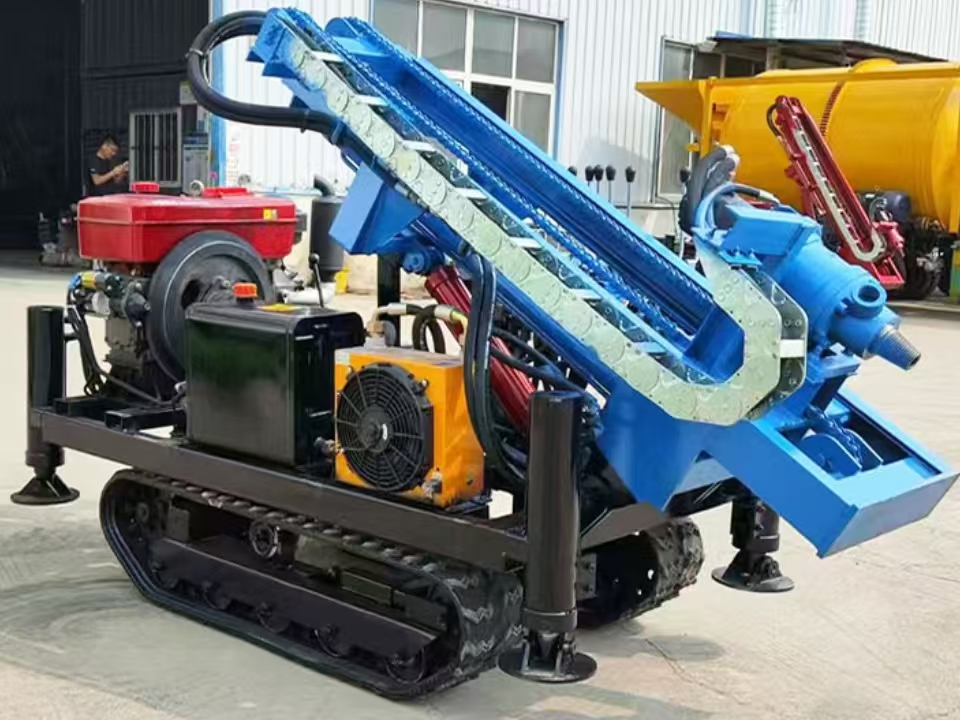

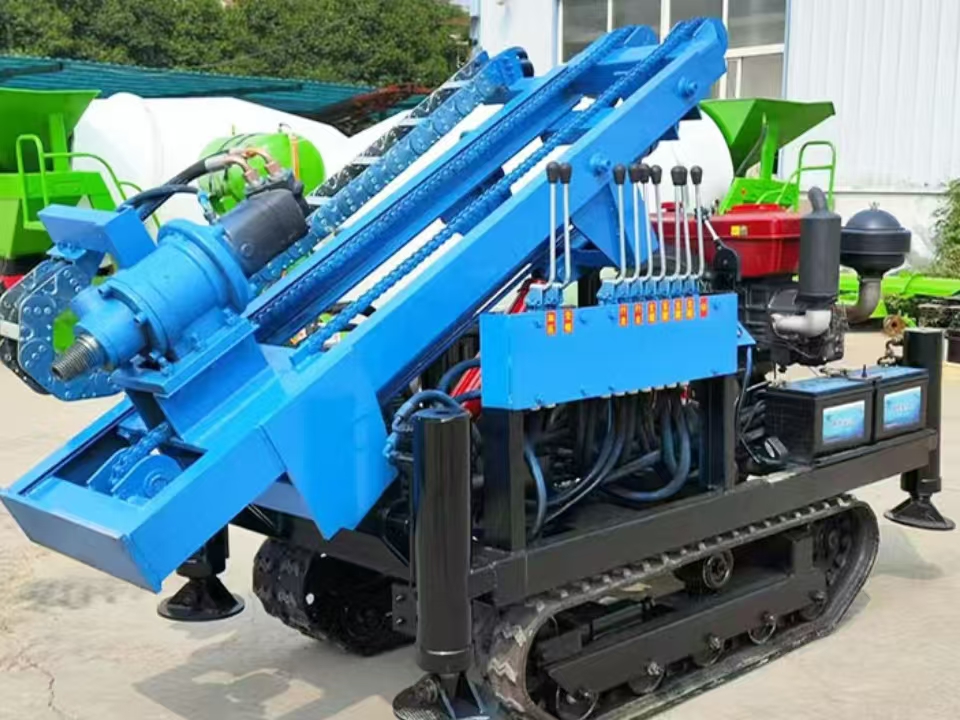

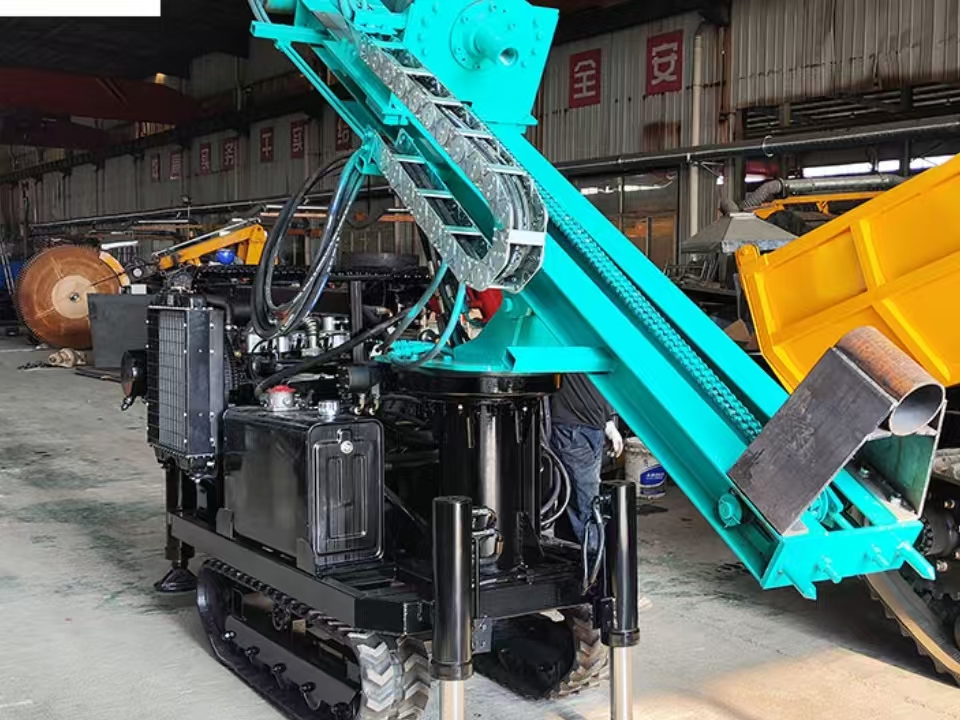

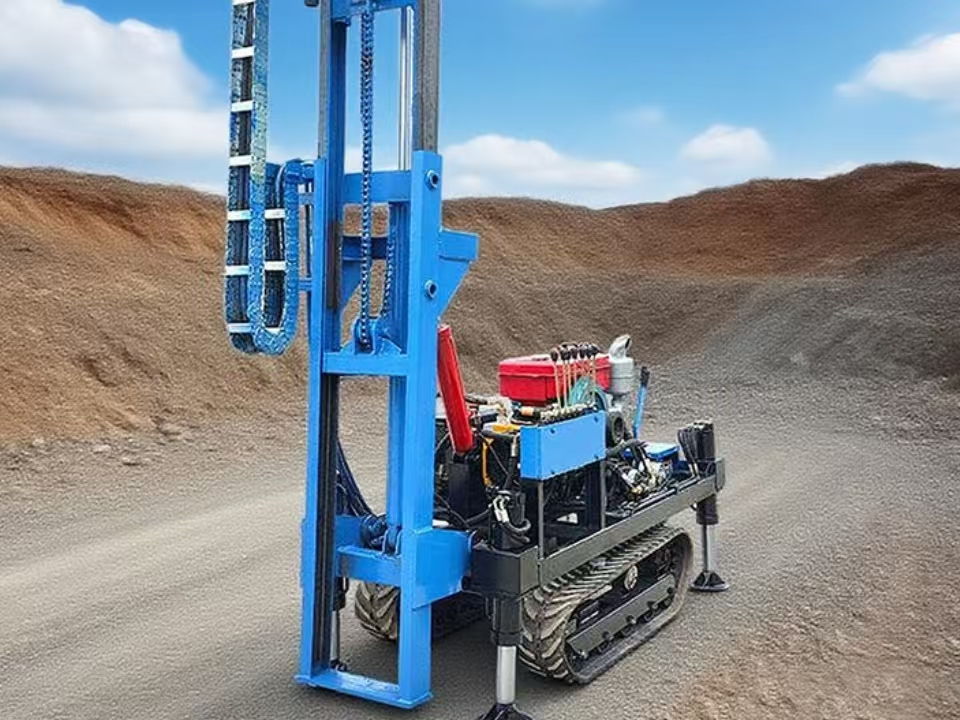

That is why product fit matters. A lighter project may suit a 150m electric portable mobile water well drilling rig, while deeper field work often pushes buyers toward a 180–200m diesel hydraulic portable water well drilling rig or a 200m deep hydraulic portable water well drilling rig. If the formation swings toward mixed drilling conditions or shaft-style work, a 200m impact mud pump type mining shaft drilling rig points to a different fluid-management logic altogether. The rig choice and the air package should be married, not introduced on the wedding day.
They compare numbers, not delivery.
A compressor package that looks acceptable at surface can become inefficient or unreliable once real drilling depth, friction loss, and formation resistance are added. That is why “best compressor for deep DTH water wells” is the wrong question. The better question is this: what compressor still delivers enough free air and useful hammer pressure at my actual bottom depth, in my actual hole diameter, with my actual water entry and cuttings burden?
And this is where I get opinionated. Too many spec sheets hide behind nominal output because nominal output sells. But bottom-hole performance buys the steel, pays the fuel bill, and decides whether your crew loses half a day clearing a dirty hole. I would take an honestly oversized air package over a perfectly marketed borderline package every time.
If your drilling plan is near the upper limit of the rig’s advertised depth, size the compressor as if the formation will be worse than expected, not better.
That sounds conservative. It is. It is also cheaper than pretending depth behaves linearly.
Bore depth changes DTH water well drilling air requirements because each added section of drill string and annular return path increases friction losses, cuttings transport distance, and the burden on bottom-hole pressure, meaning the compressor must sustain both hammer energy and cleaning velocity at depth rather than just at surface.
Yes. In practice, deeper bores usually demand more usable CFM and more retained PSI at the hammer, especially once water inflow, fractured rock, or sticky cuttings enter the picture.
CFM and PSI do different jobs in deep DTH drilling: PSI preserves hammer impact energy and bottom-hole effectiveness, while CFM maintains annular velocity and cuttings evacuation, so the winning setup is not “more of one” but enough of both to keep the bit striking hard and the hole clean.
If I had to choose the more commonly underestimated variable, I would say CFM, because poor cleaning quietly destroys drilling efficiency even before crews realize the hammer is being starved.
A compressor that works in a shallow bore can fail in a deeper one because the extra depth increases total pressure loss, return-path resistance, and cuttings lift distance, while water entry and formation instability often add enough load that the original air package no longer maintains clean returns or stable hammer pressure.
That is why a package that looks fine during a short demo can become frustrating during real production drilling at full target depth.
The fastest way to mis-size a DTH water well compressor is to compare only advertised compressor ratings and ignore hole diameter, final bore depth, expected water inflow, hose losses, drill pipe restrictions, and the annular velocity needed to return cuttings without regrind or plugging.
That buying method is common because it is simple. It is also how buyers end up owning a package that is technically operable and commercially disappointing.
Do not buy on brochure symmetry.
Match the rig, the hammer, the hole diameter, the target depth, and the likely water conditions as one system. If your project lives in the 150m class, compare the air package against a realistic operating margin, not the happiest-case demo. If you are shopping the 180m to 200m class, assume friction loss and wet returns will show up and size the compressor accordingly. That one decision will do more for drilling speed, borehole cleaning efficiency, and tool life than another round of glossy spec-sheet comparisons ever will.
