Three words first.
Most rigs lie.
And I don’t mean that in some poetic, philosophical way—I mean the numbers you’re staring at in spec sheets are usually based on clean oil, ideal pressure, zero leakage, and lab-perfect efficiency, which basically never exists once you’re drilling 180 meters into layered clay-rock junk where pressure collapses, flow fluctuates, and your motor suddenly behaves like it forgot its job.
Seen it? I have.
I’ll say something unpopular.
I frankly believe 70% of “motor sizing” conversations are nonsense.
Because nobody starts with the only thing that matters—the formation—and instead they obsess over pump flow, RPM targets, and catalog torque values, ignoring the fact that underground resistance is chaotic, inconsistent, and brutally unforgiving when your hydraulic system is even slightly mismatched.
And then?
The rig stalls.
Of course it does.
There’s actual math behind this, not just field complaining—torque is fundamentally tied to pressure and displacement, and if either one drops (which it always does under load), your usable torque drops with it .
That’s physics. Not opinion.
This one again.
People keep mixing these up.
This is where things get violent.
You’re fighting:

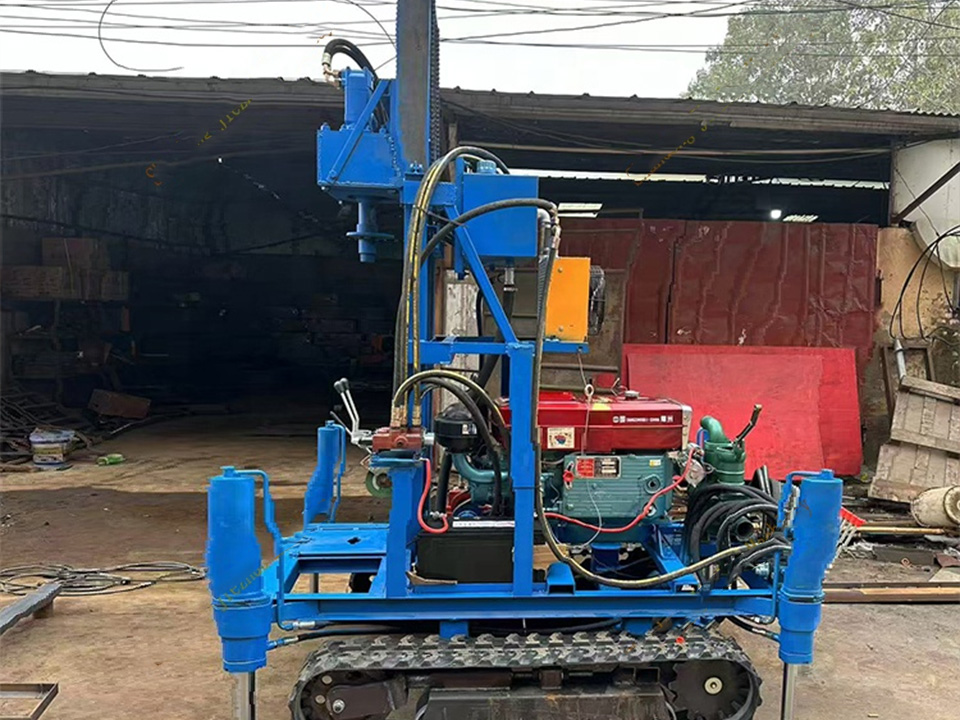

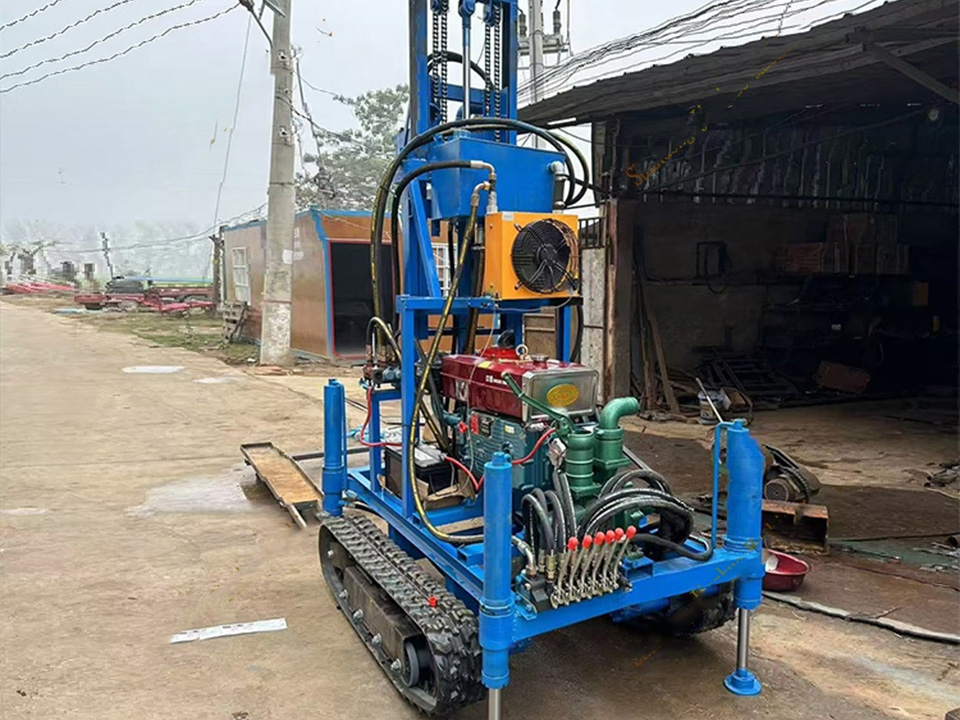

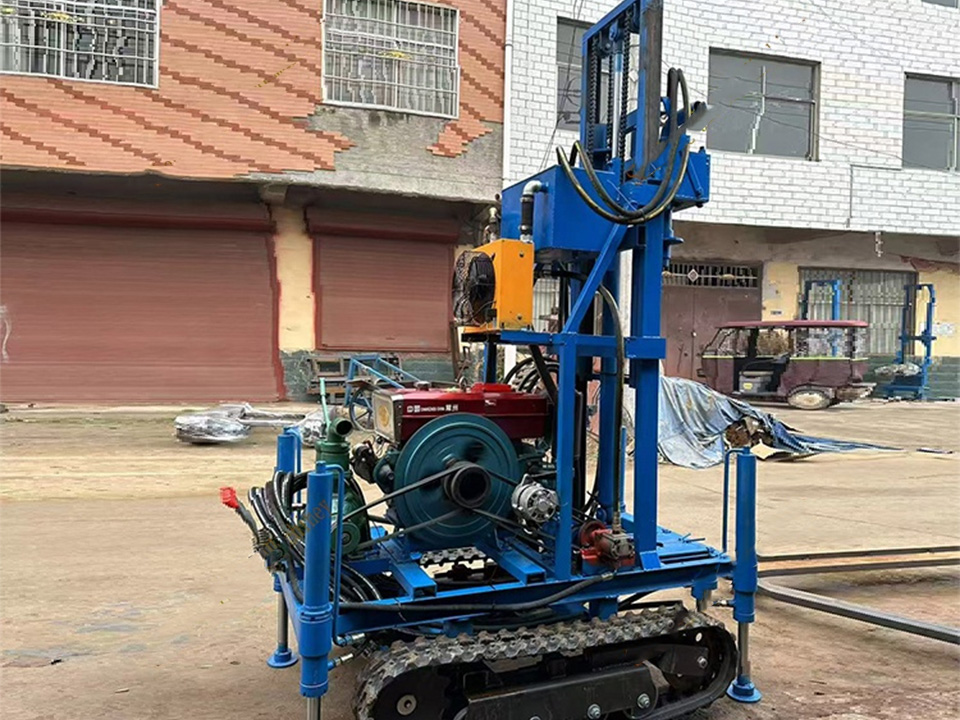

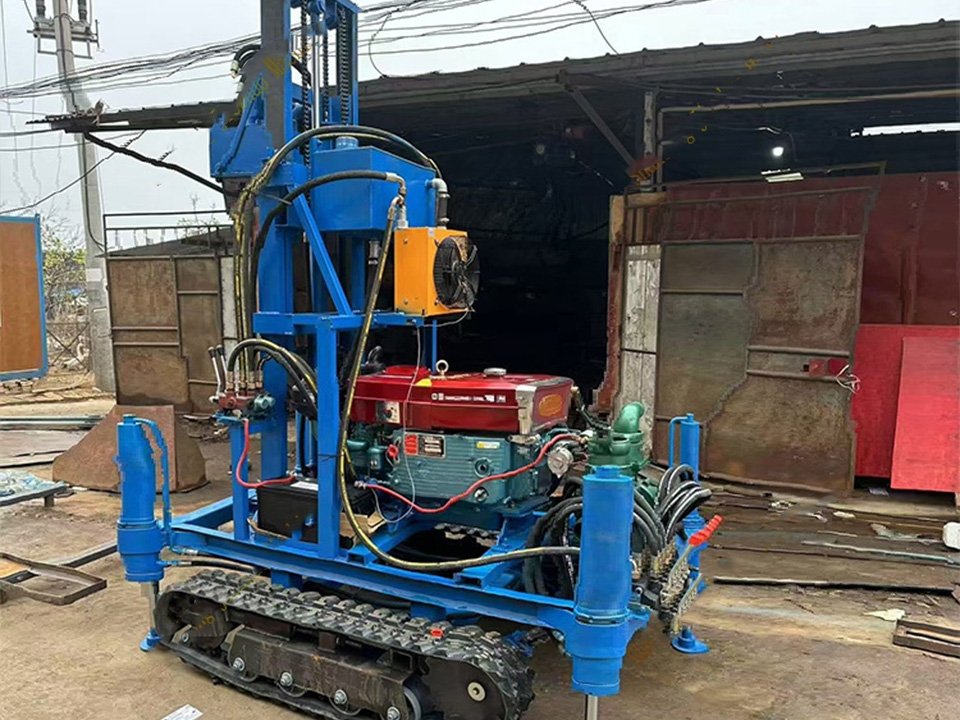

On a 260 meter crawler pneumatic rotary water well drilling rig, once you hit mixed layers—sand → clay → fractured rock—the torque demand doesn’t just increase… it spikes unpredictably.
Not smooth.
Spiky.
And if your motor can’t handle those spikes?
You stall. Or worse—burn it.
Completely different story.
Here you’re controlling:
And yet—people still size these like rotation motors.
Why?
Because they copy-paste logic.
Let’s write it clean.
Torque = Pressure × Displacement ÷ Constant × Efficiency
Looks simple.
Too simple.
Because real torque depends on differential pressure, not pump rating, and that pressure is constantly leaking away through hoses, valves, heat losses, internal slip—basically death by a thousand small inefficiencies.
Even the textbooks admit it: theoretical torque must be corrected for mechanical losses, otherwise it’s just an “ideal value” .
Ideal value.
Not field value.
So when someone tells you “this motor gives 3000 Nm,” my first question is always:
At what pressure? Under what loss?
Let’s strip it down.
Big displacement → more torque → slower speed
Small displacement → less torque → higher speed
That’s not marketing—it’s conservation of energy. You don’t get both unless you redesign the entire system .
And here’s where I get annoyed.
People try to “fix” low torque by increasing flow.
It doesn’t work.
Flow increases speed—not force.
Wrong fix.
Let’s talk actual machines.
Different rigs. Same mistake.
People size motors like the system doesn’t exist.
| Application | Pressure (bar) | Flow (L/min) | Displacement (cc/rev) | Torque Range (Nm) | RPM Range |
|---|---|---|---|---|---|
| Soft soil drilling | 120–160 | 80–120 | 200–400 | 800–1500 | 150–250 |
| Mixed formations | 160–220 | 100–180 | 400–800 | 1500–3000 | 80–150 |
| Hard rock / DTH | 200–300 | 150–250 | 800–1200 | 3000–6000 | 50–100 |
| Feed system | 120–200 | 60–140 | 300–700 | Force-based | Low |
These aren’t pretty numbers.
They’re survival numbers.
Let me vent a bit.
And my personal favorite?
“Factory recommended motor.”
I’ve seen that line cost people an entire drilling season.
This one hurts people’s ego.
Higher RPM doesn’t mean faster drilling.
Because if torque isn’t there, the bit just spins, polishes the hole, and wastes energy—meanwhile heat builds, seals degrade, and your “efficient system” turns into a maintenance nightmare.
Slow. But cutting.
That’s what works.
Hydraulic motor sizing is the process of selecting displacement, pressure rating, and flow compatibility to ensure the motor delivers required torque and speed under real drilling loads, not theoretical conditions, so the system performs reliably without stalling or overheating.
Hydraulic motor torque is calculated by multiplying differential pressure by motor displacement and adjusting for efficiency losses, because real systems lose energy through friction and leakage, making actual torque lower than theoretical values.
Pressure determines torque while flow determines speed, and in drilling operations torque is usually the limiting factor, meaning pressure and displacement must be prioritized before increasing flow to avoid performance loss in hard formations.
Motor displacement is chosen based on required torque and available pressure, where higher displacement increases torque at lower speeds, making it more suitable for hard rock drilling and unstable formations.
Here’s what I actually do.
I don’t start with the motor.
I start with:
Then I work backward.
Because honestly?
Most rigs don’t fail because they’re weak.
They fail because someone matched the wrong motor… and didn’t realize it until the drill stopped moving.
